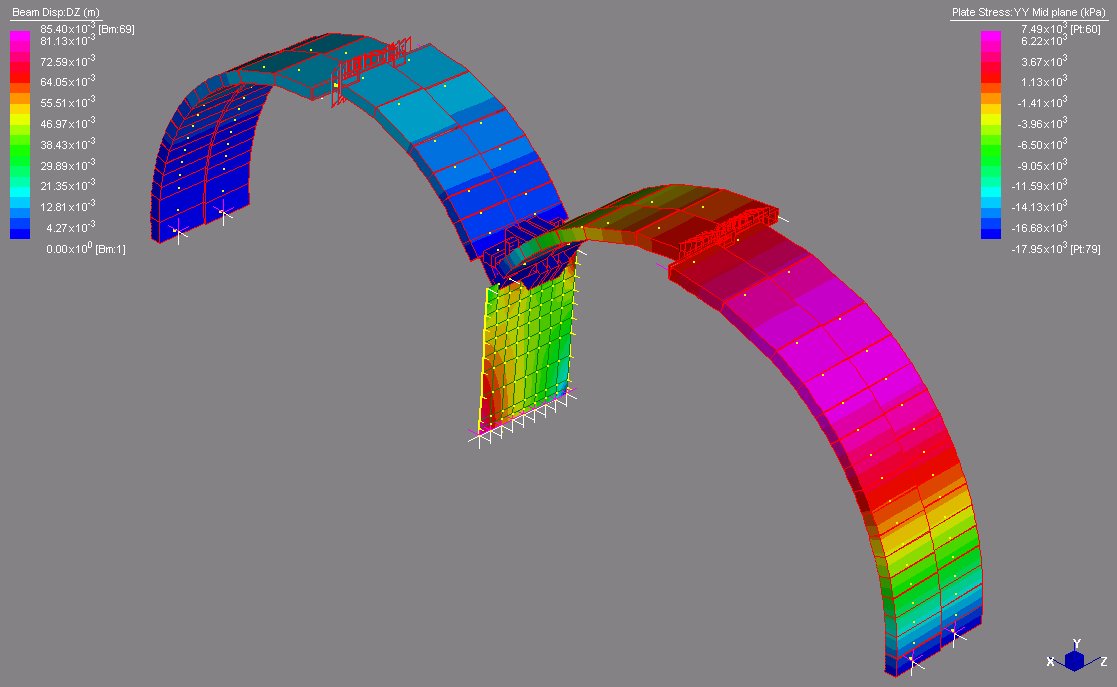

Sanggok Tunnels
Sanggok Tunnels are two fauna crossings over a dual carriage way highway in Korea. The asymmetric arches support up to 20 metres of fill. |
 |

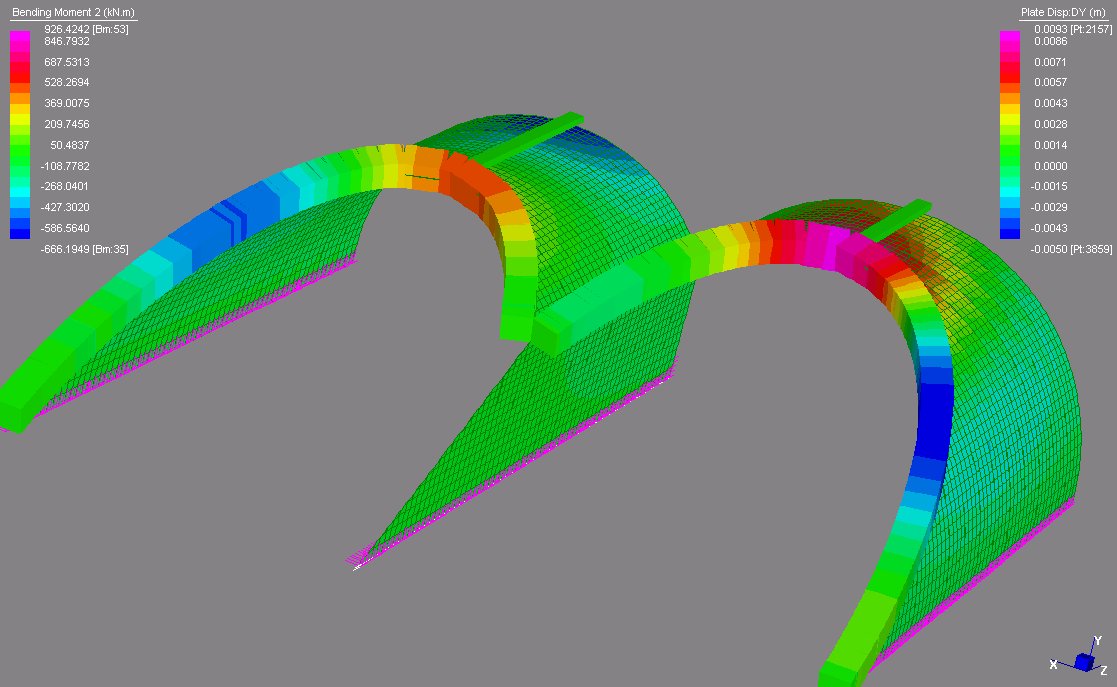

Sanggok Tunnels Bamboo Cut
The entrance and exit "bamboo cut" structures for this project were unusual for their asymmetric span arrangement
Animation of deflections due to soil loading (warning - 530 kB file) |
 |

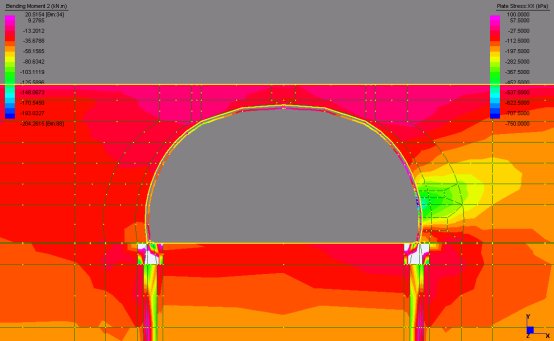

Impact Loads on Buried Structures
A technical paper recently presented at the 2003 Concrete Institute of Australia conference in Brisbane.
Design of Precast Buried Structures for Internal Impact Loading Right click to download MS Word document |
 |

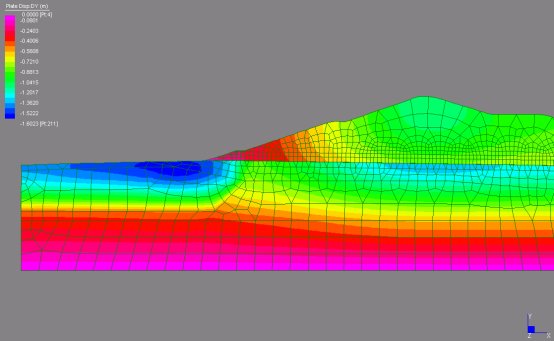

Morwell Tunnels Longitudinal analysis
Design of conveyor tunnels under 40 metres of fill, supported on deep brown coal deposits. Expected differential settlement up to 2 metres |
 |
Bridge deck analysis, membrane action
3D analysis of a pre-stressed concrete beam and slab bridge, taking account of arching action in the top slab. |
 |

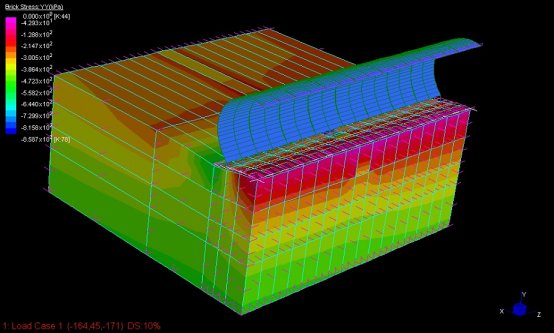

Barcoo Outlet Longitudinal Analysis
Analysis of longitudinal load effects in an arch culvert sea outfall structure |
 |

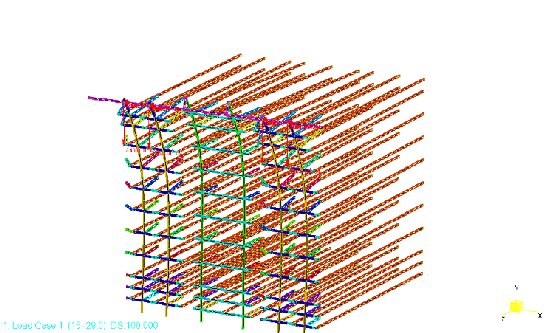

Kwinana Freeway; Abutment with Full Height Panels
Analysis of reinforced soil abutment walls with full height facing panels for combined loading from backfill and the bridge deck |
 |
